Small Spaces Barrel Silicone Oil Damper

Small Spaces Barrel Silicone Oil Damper

    Payment Type: T/T
    Terms of Trade: FOB
    Min. Order: 1000 Piece/Pieces
    Delivery Time: 20 Days
    Packaging: Standard export package
    Productivity: 1000000
    Brand: ABD
    Transportation: Ocean,Air
    Place of Origin: China
    Certificate: ISO9001:2015
    HS Code: 3926901000
    Port: Shenzhen

Basic Info

Model No.: DY09A

Product Description


The design of middle through hole is easy to install, barrel silicone oil damper is usually used in small spaces. ABD barrel silicone oil dampers are the perfect solution for a wide range of applications. Barrel silicone oil dampers are widely used in automobile interior decoration, small flip plate,small spaces, safety handle of car roof ,lock handle, jewelry box, gift box, small flip plate slow bounce or soft close, etc. Our barrel silicone oil dampers can make the movement of structures soft, quiet and safe to mitigate the impact, avoid the damage, increase the mechanical life, reduce noise, and improve product quality.

Full inspection of all our products torque, guarantee the stability of the product torque. Our company has a leading R & D team in the peer, our product has several patents, ensuring a steady stream of new product development for the company. We pursue creating the value for you based on our high quality service, products and favorable prices. Feel free to contact us if you are interested in any of the ABD dampers and services.



Barrel Silicon Oil Damper


Specifications


Applied Torque(T)
(gf.cm )
501 500±100gf.cm







NOTE:

1.Please contact the corresponding product engineer for specific torque products.

2.Max. rotation speed: 50r/min

3.Max. circle rate: Clockwise180 °, 180 ° anti-clockwise for 1 cycle

4.Operating temperature: -10~50

5.Storage temperature:-30~60


Drawings

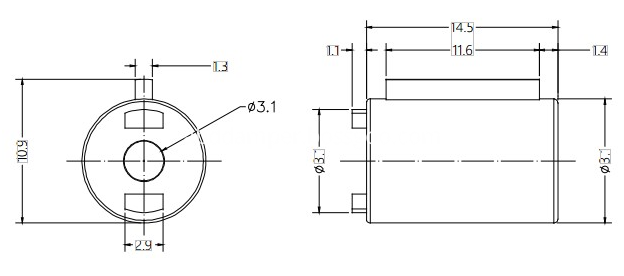

Barrel Damper Drawing of DY09A

Damper Boundary dimension of DYO9A


Materials

2 Shaft ABS
1 Shell POM
NO. Description Material





Damper Characteristics

Damper Characteristics OF DY09A


Applied torque:(T)

Test Temperature:23+/-5

Rotating speed:20r/min

Durability test Method:Clockwise 180 °, 180 ° anti-clockwise

Rotating speed:20r/min

Test Frequency:1cycle/min

Test Temperature:23±5

Durability test cycle:10000 cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.

Applications

Automobile interior decoration,small flip plate, small spaces, car grab handle, door lock handle, car door handle, jewelry box, gift box, small cover plate slow bounce, small cover plate soft close, etc.
.



Caution

1.Do not operate without sufficient mounting strength.

2.Do not operate without an external stopper.
3.Using dampers beyond the specified.
4.Please do not use under the oil or vacuum environment.
5.Do not discard abandoned damper.
6.Radial load to the shaft.
7.Over-tightening of mounting screws.
8.Using dampers beyond the durability.
